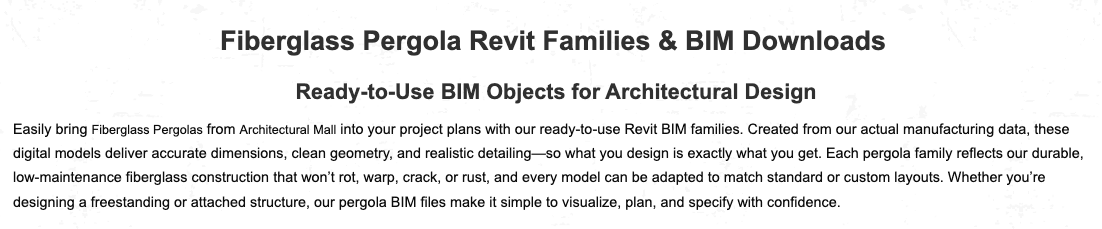

Fiberglass Pergola Revit Families & BIM Downloads
Ready-to-Use BIM Objects for Architectural Design
Easily bring Fiberglass Pergolas from Architectural Mall into your project plans with our ready-to-use Revit BIM families. Created from our actual manufacturing data, these digital models deliver accurate dimensions, clean geometry, and realistic detailing—so what you design is exactly what you get. Each pergola family reflects our durable, low-maintenance fiberglass construction that won’t rot, warp, crack, or rust, and every model can be adapted to match standard or custom layouts. Whether you’re designing a freestanding or attached structure, our pergola BIM files make it simple to visualize, plan, and specify with confidence.

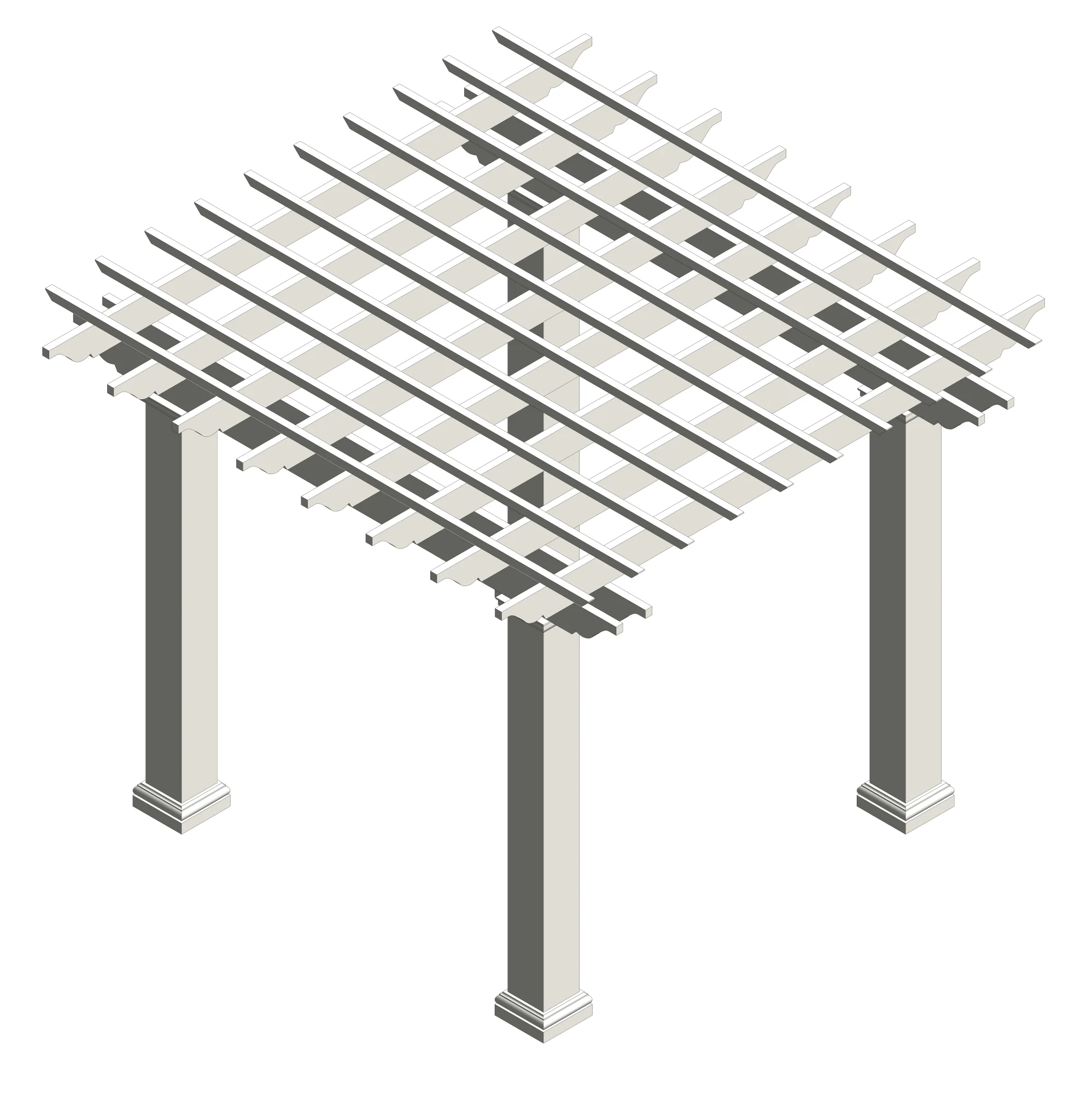

Free Standing Pergola – Round or Square Columns
12′ x 10′ up to 22′ Free standing with Round or Square Column
14′ x 10′ up to 22′ Free standing with Round or Square Column
16′ x 10′ up to 22′ Free standing with Round or Square Column
18′ x 10′ up to 22′ Free standing with Round or Square Column
20′ x 10′ up to 22′ Free standing with Round or Square Column
22′ x 10′ up to 22′ Free standing with Round or Square Column
Attached Pergola – Round or Square Columns
12′ x 10′ up to 22′ Attached with Round or Square Column
14′ x 10′ up to 22′ Attached with Round or Square Column
16′ x 10′ up to 22′ Attached with Round or Square Column
18′ x 10′ up to 22′ Attached with Round or Square Column
20′ x 10′ up to 22′ Attached with Round or Square Column
22′ x 10′ up to 22′ Attached with Round or Square Column
Want to learn more about our fiberglass pergolas? visit our Fiberglass Pergola product page for full specs, finishes and installation details.
You can also explore our goring BIM library, including ready-to-use Bracket Revit Families and Balustrade Revit Families to enhance your architectural project.
