Product Details
Newel Posts
Durable Architectural Newel Posts for Balustrade Systems
Our architectural Newel Posts are designed to add strength, stability, and timeless style to any balustrade system. We offer them in several premium materials—Cast Fiberglass, Spray-Up Fiberglass (FRP), Synthetic Polymer Stone, and GFRC (Glass Fiber Reinforced Concrete)—each engineered for long-lasting performance and low maintenance.
If you’re unsure which material best suits your project, explore our detailed video guide covering all fiberglass and alternative materials, including specifications, durability, and recommended applications.
Available in a wide range of sizes—from 4-7/8″ to 25-7/8″ in width and up to 46″ in height—our Newel Posts can complement both traditional and contemporary architectural styles. The listed weights reflect our cast fiberglass and polymer stone models, while the lightweight spray-up (FRP) newel posts are designed to cover structural components and come pre-split for easy installation.
For personalized guidance or a custom quote, call us at 877-279-9993 or email our design team—we’re happy to help.

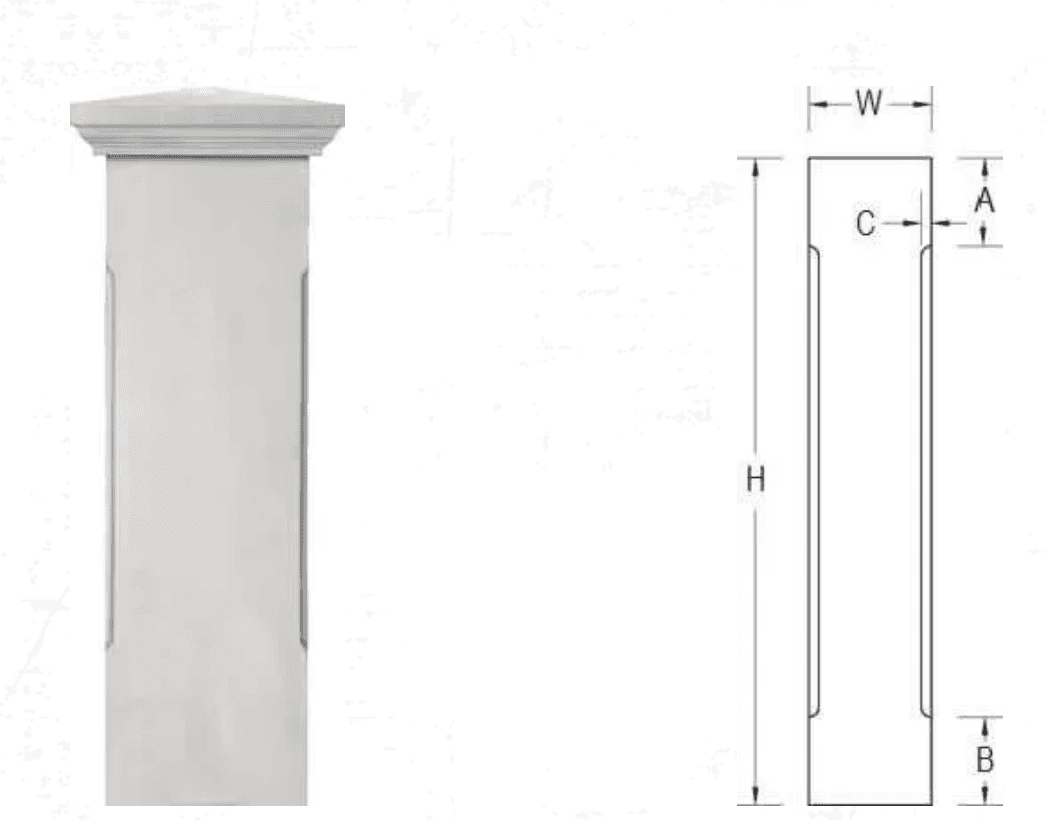

Part Number | Width {W} | Height {H} |
|---|---|---|
NPP7-38 | 7" | 37-5/8" |
NPP7-44 | 7" | 44" |
NPP7-46 | 7" | 45-1/2" |
NPP9-30 | 9" | 30-1/4" |
NPP9-38 | 9" | 37-1/2" |
NPP9-44 | 9" | 44" |
NPP9-46 | 9" | 45-3/4" |
NPP12-38 | 11-7/8" | 37-1/2" |
NPP12-44 | 11-7/8" | 44" |
NPP12-46 | 11-7/8" | 45-5/8" |
NPP14-38 | 13-7/8" | 37-1/2" |
NPP18-38 | 17-7/8" | 37-1/2" |
NPP18-44 | 17-7/8" | 43-1/4" |
NPP24-38 | 23-7/8" | 37-1/2" |
NPP26-38 | 25-7/8" | 37-1/2" |
Part Number | Top Detail Distance {A} | Bottom Detail Distance {B} | Side Detail Distance {C} |
|---|---|---|---|
NPP7-38 | 7-1/2" | 7-1/2" | 1-5/8" |
NPP7-44 | 7-1/2" | 13-7/8" | 1-5/8" |
NPP7-46 | 7-1/2" | 15-3/8" | 1-5/8" |
NPP9-30 | 7-5/8" | 8-5/8" | 1-7/8" |
NPP9-38 | 7-1/2" | 7-1/2" | 1-3/4" |
NPP9-44 | 7-5/8" | 13-3/4" | 1-5/8" |
NPP9-46 | 7-5/8" | 15-5/8" | 1-5/8" |
NPP12-38 | 7-3/4" | 7-3/4" | 1-5/8" |
NPP12-44 | 7-1/2" | 14-1/2" | 1-1/2" |
NPP12-46 | 7-1/2" | 16-1/8" | 1-1/2" |
NPP14-38 | 7-1/2" | 7-1/2" | 1-3/4" |
NPP18-38 | 7-1/2" | 7-1/2" | 1-3/4" |
NPP18-44 | 7-1/2" | 7-1/2" | 1-5/8" |
NPP24-38 | 7-1/2" | 7-1/2" | 3-1/16" |
NPP26-38 | 7-1/2" | 7-1/2" | 3-1/16" |
Part Number | Inside Diameter | Weight |
|---|---|---|
NPP7-38 | 5-1/2" | 58 |
NPP7-44 | 5-1/2" | 63 |
NPP7-46 | 5-1/2" | 65 |
NPP9-30 | 7-3/4" | 62 |
NPP9-38 | 7-1/2" | 78 |
NPP9-44 | 7-1/2" | 83 |
NPP9-46 | 7-1/2" | 97 |
NPP12-38 | 10-3/8" | 130 |
NPP12-44 | 10-3/8" | 144 |
NPP12-46 | 10-3/8" | 152 |
NPP14-38 | 12-1/8" | 170 |
NPP18-38 | 16" | 225 |
NPP18-44 | 16-1/8" | 236 |
NPP24-38 | 22" | 370 |
NPP26-38 | 23-1/4" | 440 |

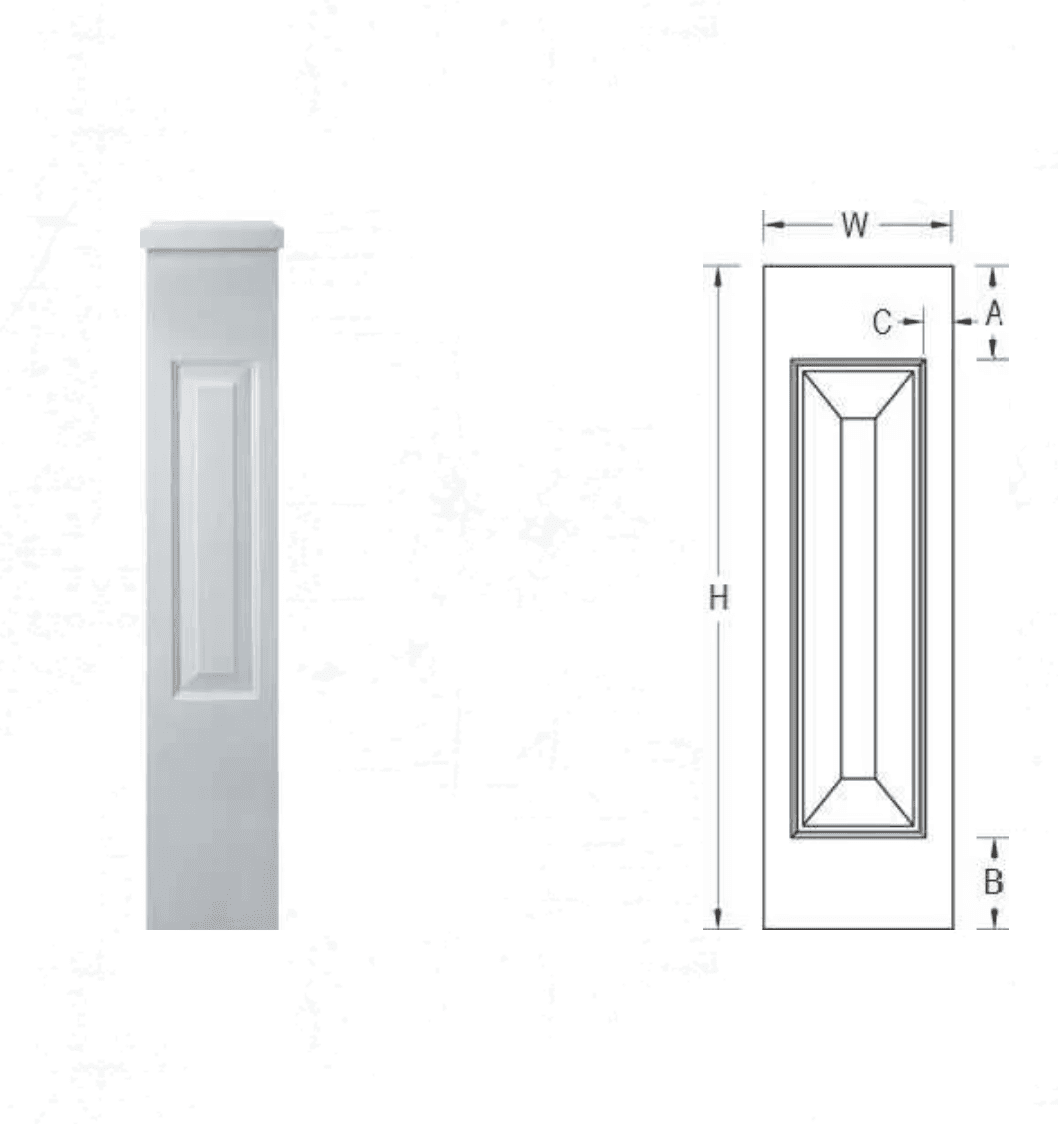

Part Number | Width {W} | Height {H} |
|---|---|---|
NPP9-38D | 8-3/4" | 37-5/8" |
NPP9-46D | 8-7/8" | 45-1/2" |
NPP12-38D | 11-3/4" | 37-3/4" |
Part Number | Top Detail Distance {A} | Bottom Detail Distance {B} | Side Detail Distance {C} |
|---|---|---|---|
NPP9-38D | 7-1/2" | 7-1/2" | 1-3/4" |
NPP9-46D | 7-1/2" | 15-1/2" | 1-5/8" |
NPP12-38D | 7-3/4" | 8-1/2" | 1-5/8" |
Part Number | Inside Diamter | Weight |
|---|---|---|
NPP9-38D | 7" | 176 |
NPP9-46D | 6-3/4" | 206 |
NPP12-38D | 10" | 320 |
Part Number | Width {W} | Height {H} |
|---|---|---|
NP5 | 4-7/8" | 37-1/2" |
NP7 | 6-7/8" | 39-3/4" |
NP9 | 8-7/8" | 37-5/8" |
NP12 | 11-7/8" | 38-1/8" |
Part Number | Top Detail Distance {A} | Bottom Detail Distance {B} | Side Detail Distance {C} |
|---|---|---|---|
NP5 | 6" | 8" | 1/2" |
NP7 | 6-1/4" | 6-1/4" | 1/2" |
NP9 | 6-1/2" | 8-1/2" | 1/2" |
NP12 | 6-1/2" | 9-1/4" | 1/2" |
Part Number | Inside Diameter | Weight |
|---|---|---|
NP5 | 4" | 28 |
NP7 | 5-3/4" | 58 |
NP9 | 7-3/4" | 78 |
NP12 | 10-1/2" | 140 |

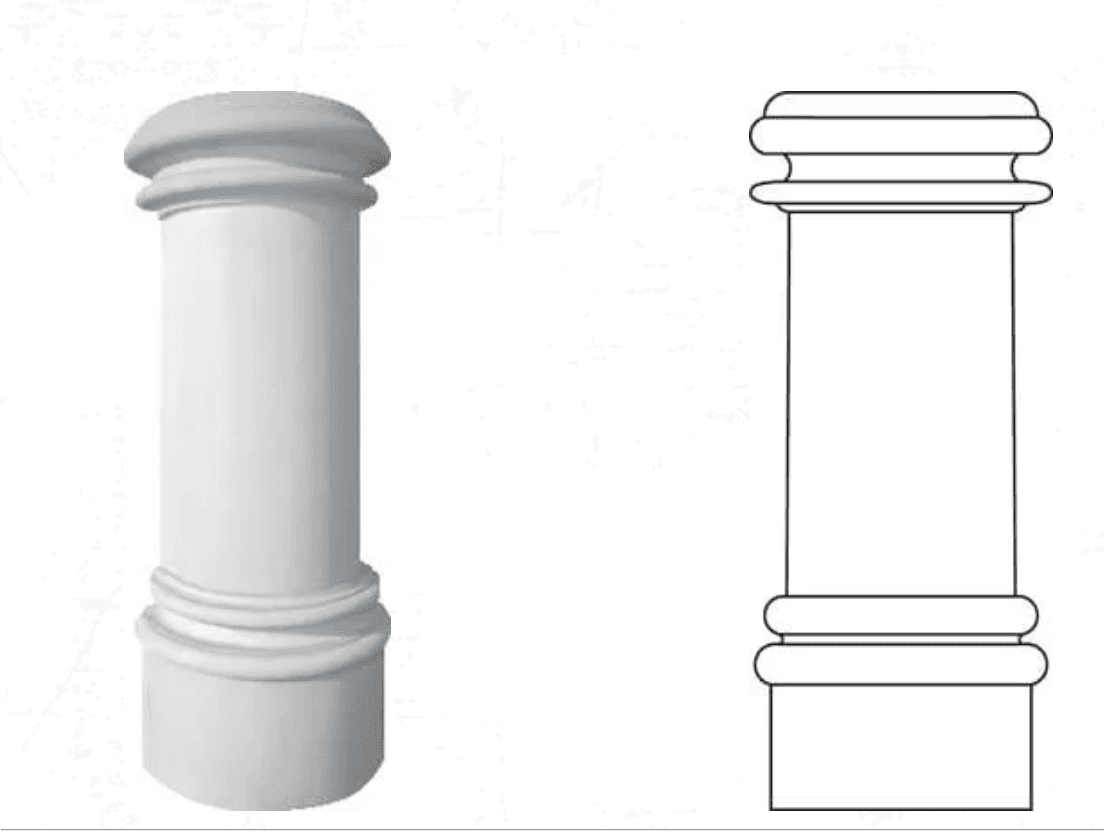

Part Number | Width {W} | Height {H} | Weight |
|---|---|---|---|
NPR6 | 6" | 38-46" | 45-53 |
NPR8 | 8" | 38-46" | 80-85 |
NPR10 | 10" | 38-46" | 105-110 |
NPR12 | 12" | 38-46" | 150-155 |
